The characteristics of NANO mineral casting

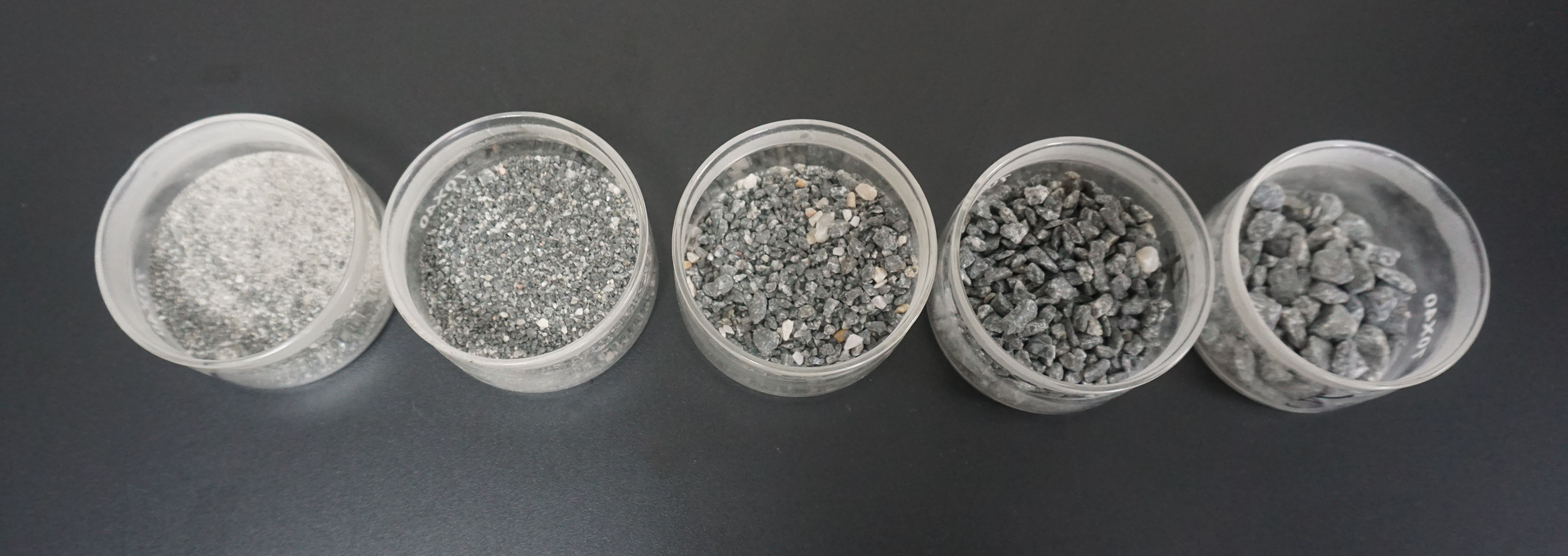

         NANO mineral castings are a type of high-molecular mineral composite material formed by mixing and vibrating compacting natural granite particles as the main aggregate with organic epoxy resin as the adhesive. Thismaterial is an emerging structural material for the future, and due to its excellent properties, it has gradually become a substitute for traditional metal materials such as cast iron and aluminum. It plays a crucial role in improving the mechanical performance and precision of equipment, and is widely used in structural components of high-precision equipment.It has been widely applied globally.Atpresent, themineral castings produced by NANO have covered multiple industries such as machine tools, semiconductors, LCD, medical, electronics,aerospace, optics, etc.

      NANO mineralcastings have three series withsix formulations. Below are the performance of our  basic materialformulations. We can modify the formulationbased on the special requirements of  our customers. The corresponding physical properties of the materials will be changed. For  example, if the damping performance is required to be improved, thestrength of the material will  be weakened accordingly.

      Characteristics of mineral castings

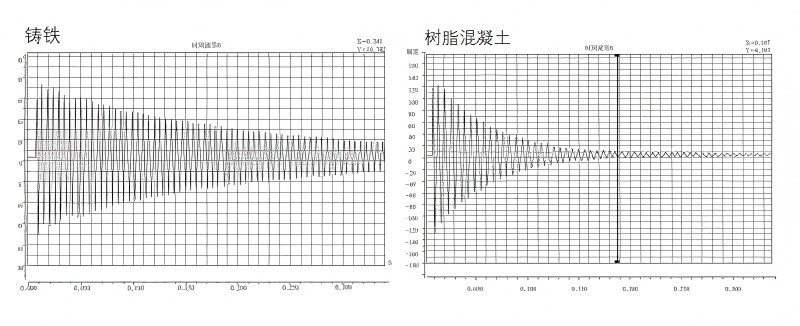

      1. Vibration dampingis the greatest advantage of this material compared to traditionalcast iron. Its  vibration absorption capacityis over 10 times that ofcast iron, 45 times betterthan that of aluminum, and 4 times better than that ofnatural granite.

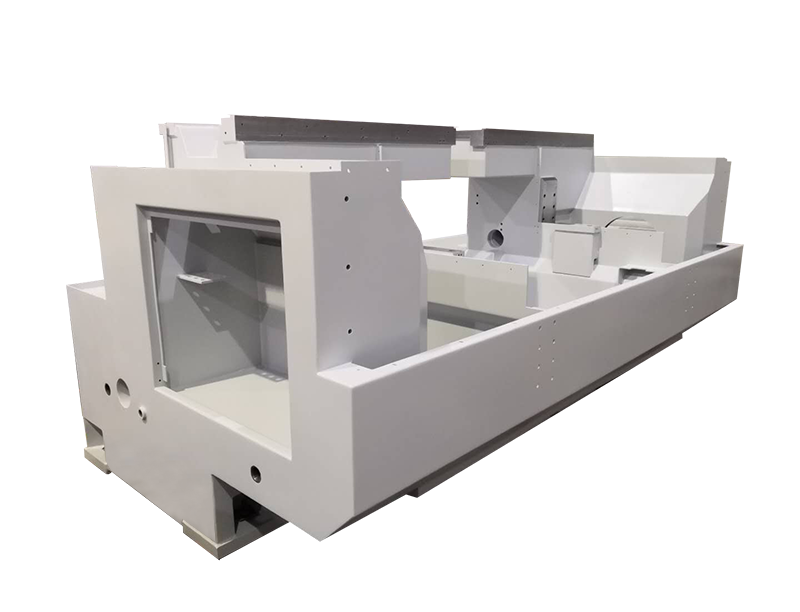

     2.Mineral casting has the complex shape forming capability and perfectintegrationcapabilities.It can enable the casting of complex shapes that traditional cast iron cannot produce.Wecan use special adhesives to achieve more complex shapes and the processing of large-sized products through  bonding. This material is cast at room temperature, sosomecomponents suchas pipelines for  circulating coolant, guides, wires, and connecting pieces to be directly embeddedintothe mineral  castings. It cansave much time for secondary assembly and processing. This significantly improves  the production efficiency and economic benefits of users, while also greatly enhancing the overall  structure and appearance of the equipment, getting simpleand attractiveappearance!

    3.Provide precision painted finished products. Customers no longer need to perform additional  processing and no needaging. This improves the production efficiency of the customers.

    4.Corrosion resistance: Mineral castings have strong resistance to corrosive substances such as cutting fluids and coolant fluids.

    5.Green and environmentally friendly: Compared to the high pollution of the cast iron industry,  mineral materials are energy-saving and environmentally friendly materials. The carbon dioxide  emissions are reduced by80% compared to cast iron.

       For the future of manufacture,dedication cleaner,better and more reliable materials.
